A vapor barrier is a polyethylene sheeting system installed on the ground and walls of a crawl space or basement to block ground moisture from migrating into the structural environment above. A correctly installed vapor barrier in Broadview Heights requires the right material specification, proper seam treatment, wall coverage, and mechanical fastening to provide lasting protection against moisture migration.
A mil is one-thousandth of an inch, and the difference between a 6-mil sheet and a 20-mil sheet is significant in terms of puncture resistance, lifespan, and moisture vapor transmission rate. A 20-mil reinforced vapor barrier significantly reduces vapor diffusion and resists punctures from gravel, debris, and service personnel working in the crawl space.
Seam treatment is equally important to the material specification when it comes to achieving a functioning vapor barrier system. Seam quality is one of the most overlooked and most impactful aspects of the vapor barrier installation.
A properly installed vapor barrier extends up the wall from the floor, typically to the sill plate, and is secured with concrete adhesive or mechanical fasteners at the top. The combination of floor coverage, properly lapped and taped seams, and full wall coverage to the sill plate creates a complete moisture envelope that dramatically reduces crawl space humidity and protects the wood framing above.
High crawl space humidity leads to wood rot in floor joists and sill plates, a process that progresses silently over years before structural symptoms appear. If the barrier is incomplete or poorly sealed, a dehumidifier simply works harder against an unlimited moisture supply, running continuously and consuming excessive energy without achieving target humidity levels.
Our installers are trained on manufacturer specifications for every product we use.
The materials we install in Broadview Heights are built to last decades, not years.
Full perimeter coverage is non-negotiable in our installation standard.
Our vapor barrier installations carry a written warranty covering materials and workmanship.
We install reinforced polyethylene sheeting across the entire crawl space floor with full wall coverage and butyl-taped seams throughout.
Older thin-mil or damaged vapor barriers in Broadview Heights, OH homes are common and leave crawl spaces with inadequate moisture protection.
The installation includes full seaming, perimeter taping, and wall coverage to the base of the finished wall or sill plate.

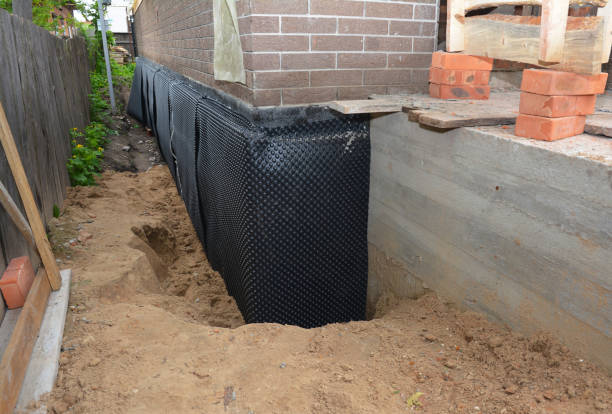

In basements with both vapor migration and liquid water management needs, we integrate dimple mat drainage board beneath the vapor barrier to channel any liquid water to a perimeter drain system.
In high-humidity areas of Broadview Heights, OH, a vapor barrier alone may not be sufficient to control crawl space moisture during peak summer months.
Inspection findings are documented with photos and a written report detailing any deficiencies and recommended corrective actions.
We measure the space, assess existing moisture conditions, document any existing barrier or mold, and identify all penetrations that will need to be addressed in the installation
Based on site conditions, we specify the appropriate mil rating, calculate material quantities, and plan the seaming layout for maximum coverage and minimum waste
Sheeting is laid, overlapped at 12 inches minimum, taped with butyl tape at all seams, and extended up all walls with mechanical fastening at the top edge
We walk through the completed installation with you, confirm all seams and coverages are complete, and provide written warranty documentation before leaving
